- Bluetooth Version: Bluetooth v5.0 compatible with aptX
- Audio Inputs: Bluetooth Receiver or Stereo Audio Line-Level Input
- Bluetooth Range: Up to 30 meters (open space)
- Power Amplifier Type: Stereo Class-D
- Output Power: 2 × 25W RMS per channel (@ 4Ω)

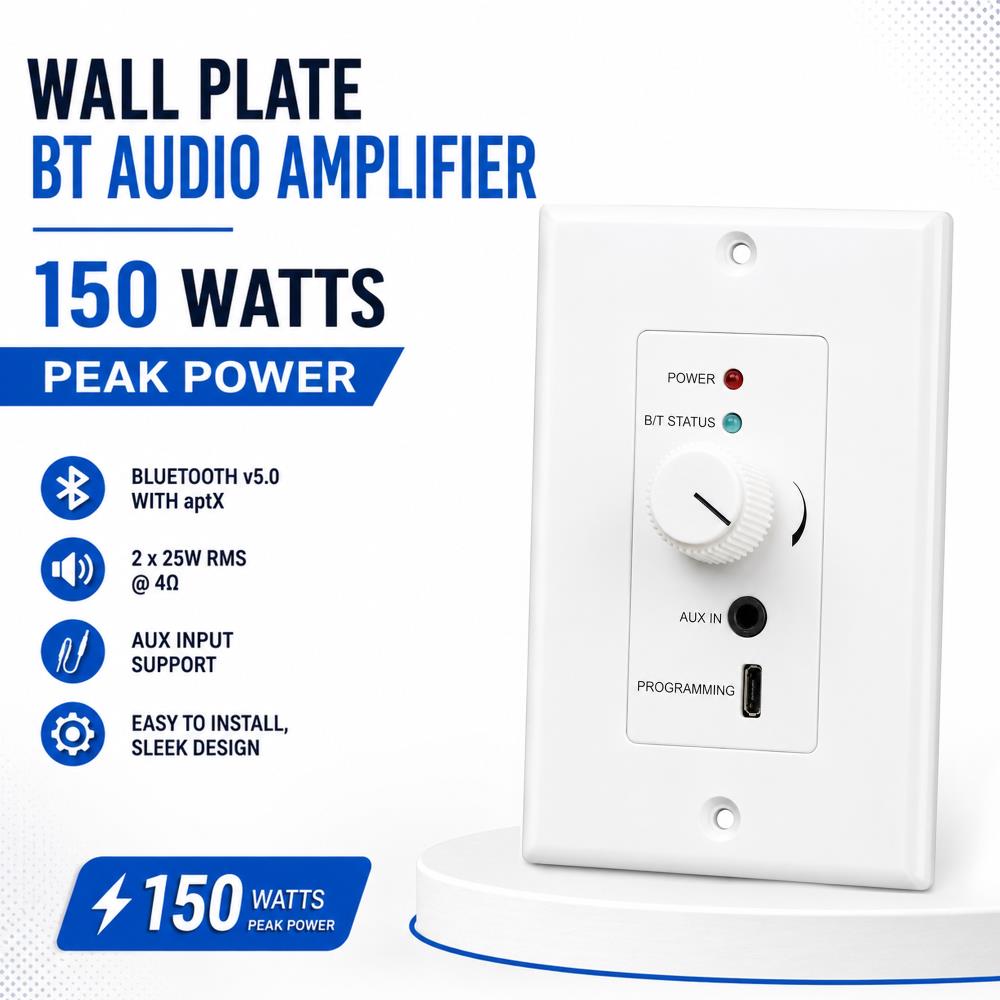

- Peak Power: 150 Watts
- Minimum Load Resistance: 4Ω
- THD+N: 0.1% (@ 4Ω, 1 kHz)
- Speaker Protection: Built-in protection circuit
- Audio Priority: Bluetooth > AUX Input

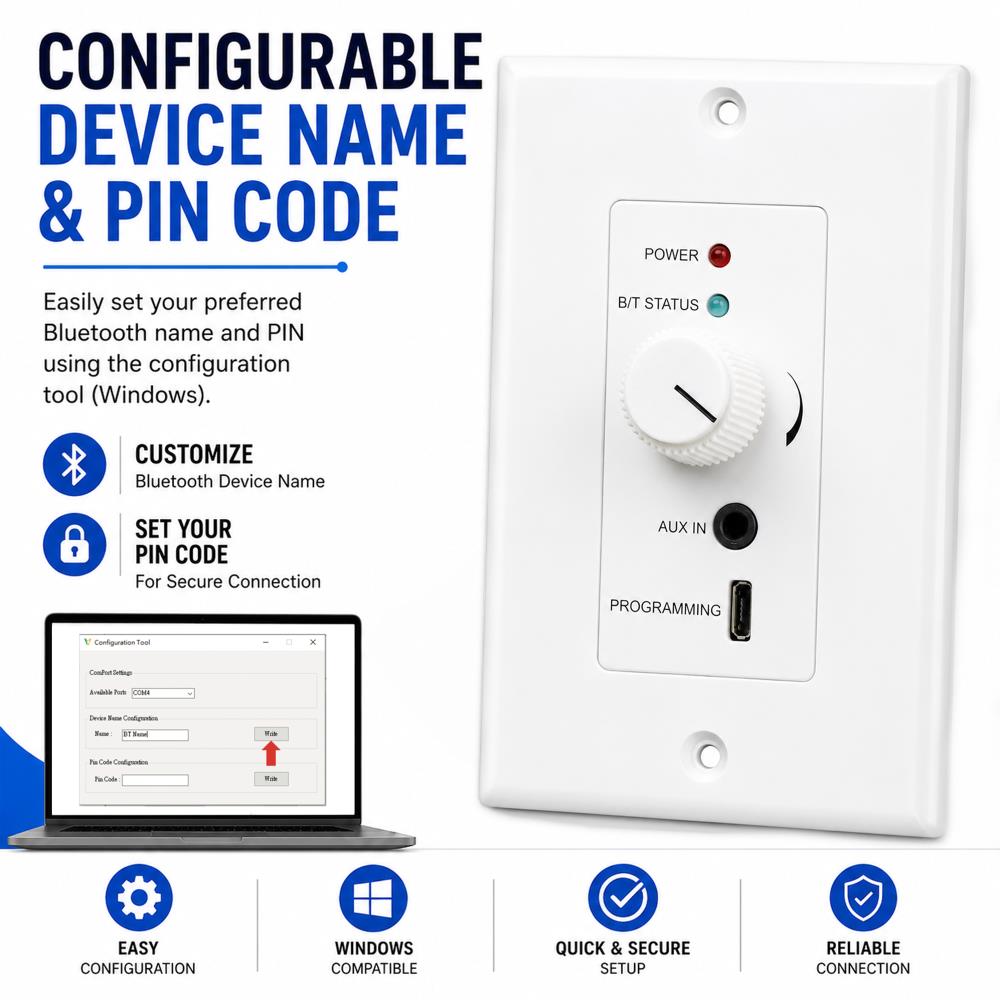

- Configurable Bluetooth Device Name
- Configurable Bluetooth PIN Code
- Link-Lost Timeout: 3-minute automatic pairing mode reset
- Power Source: 24 VDC

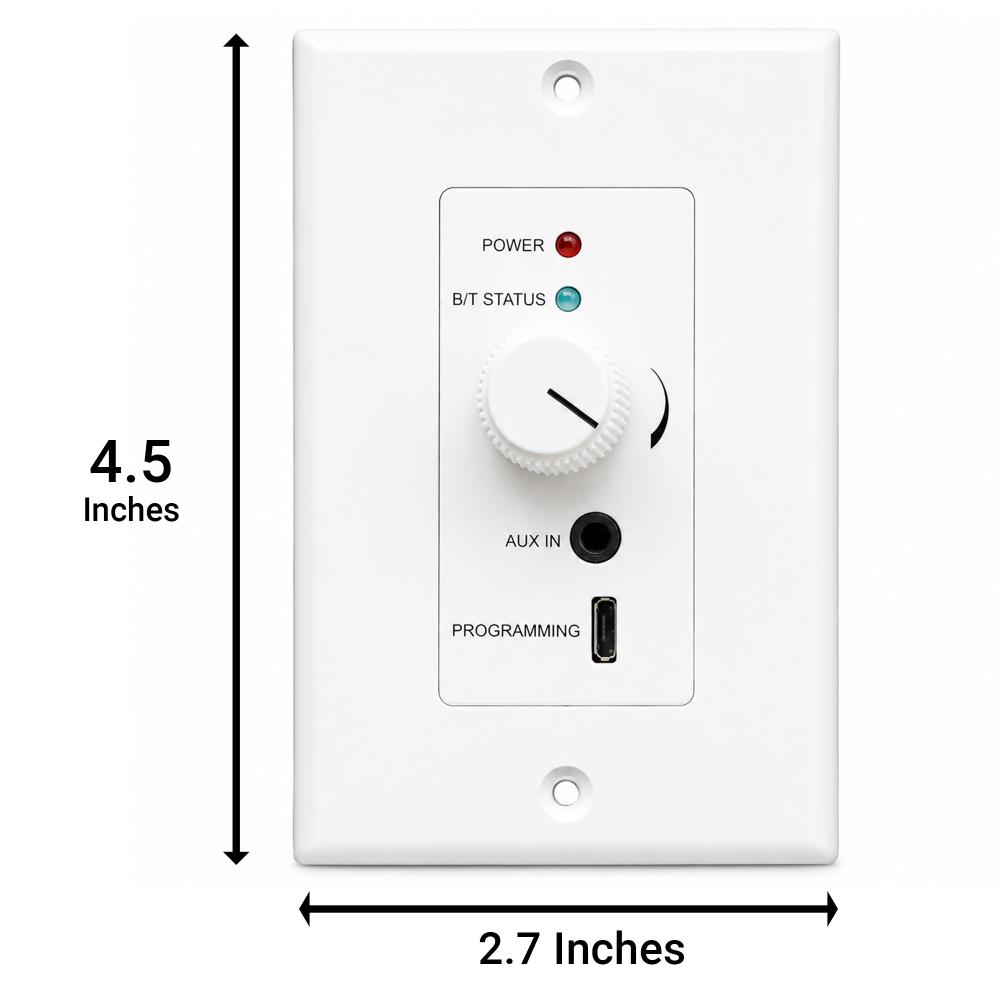

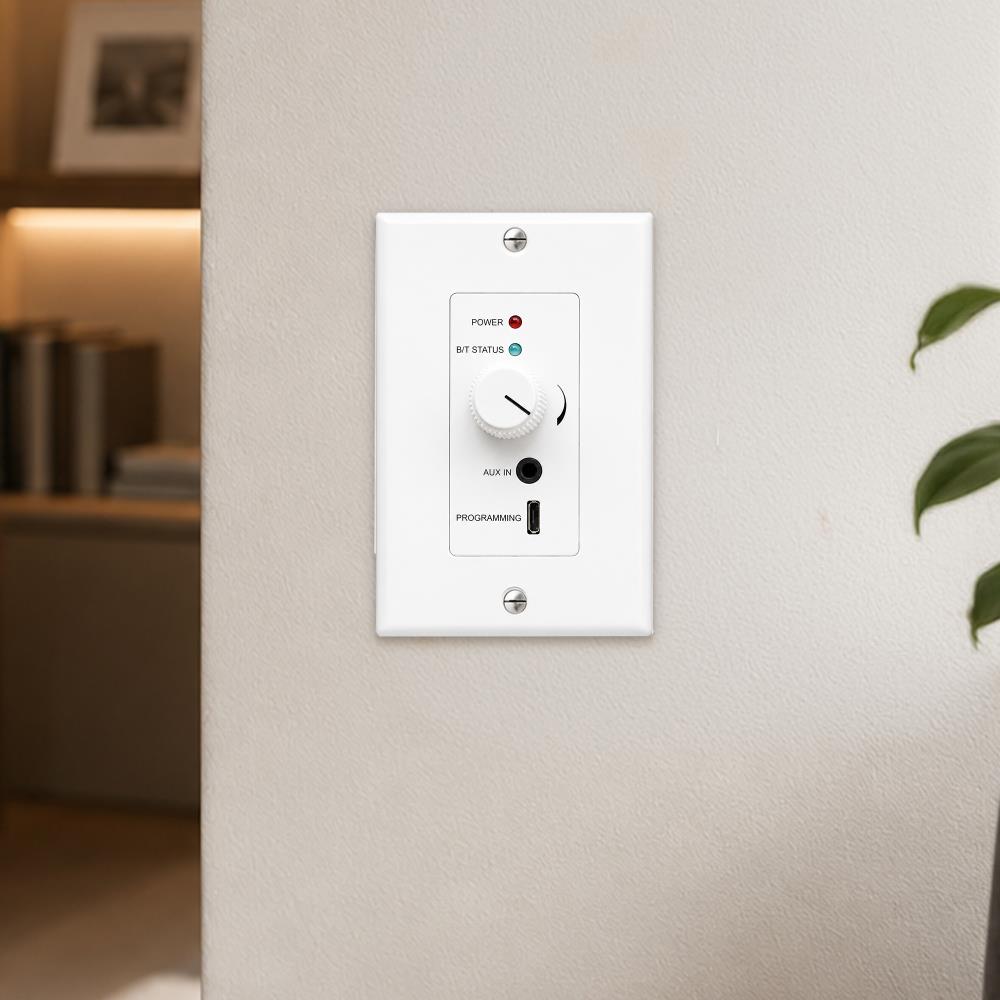

- Design: Compact wall plate for easy installation
- Certification: FCC Certified

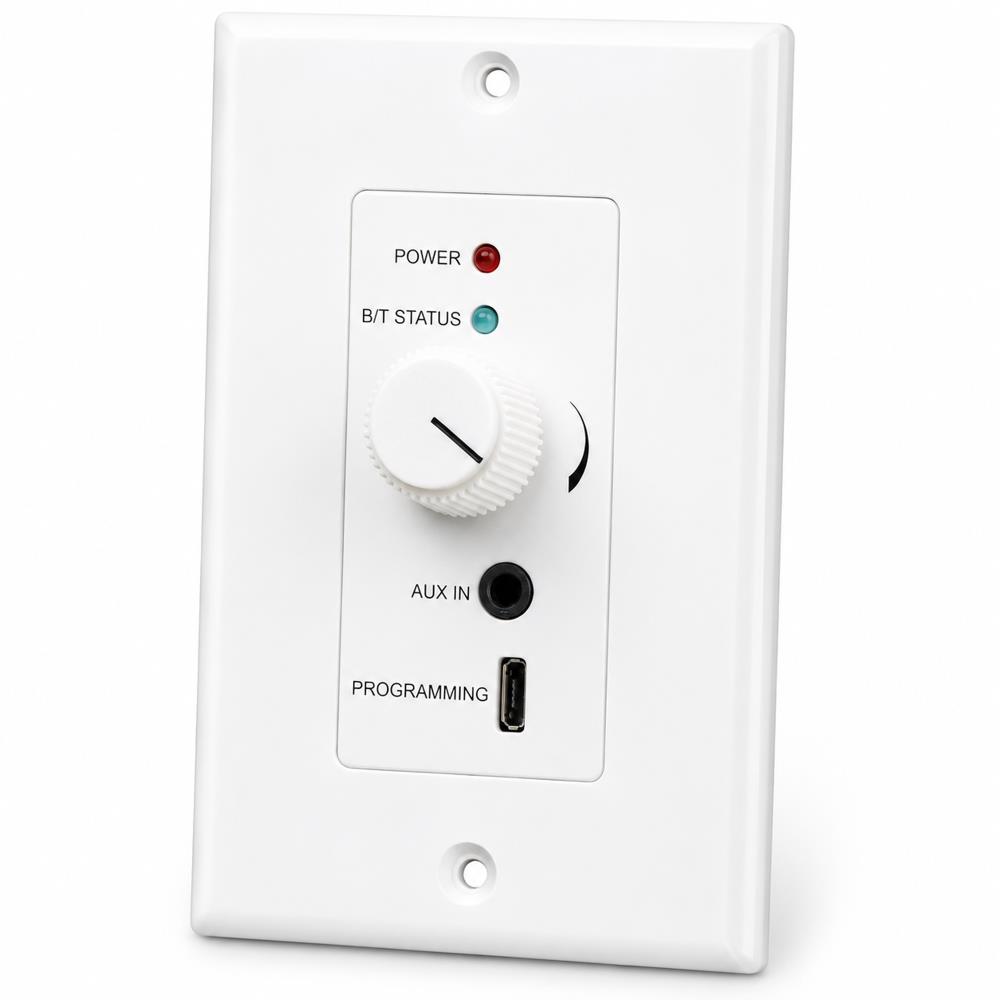

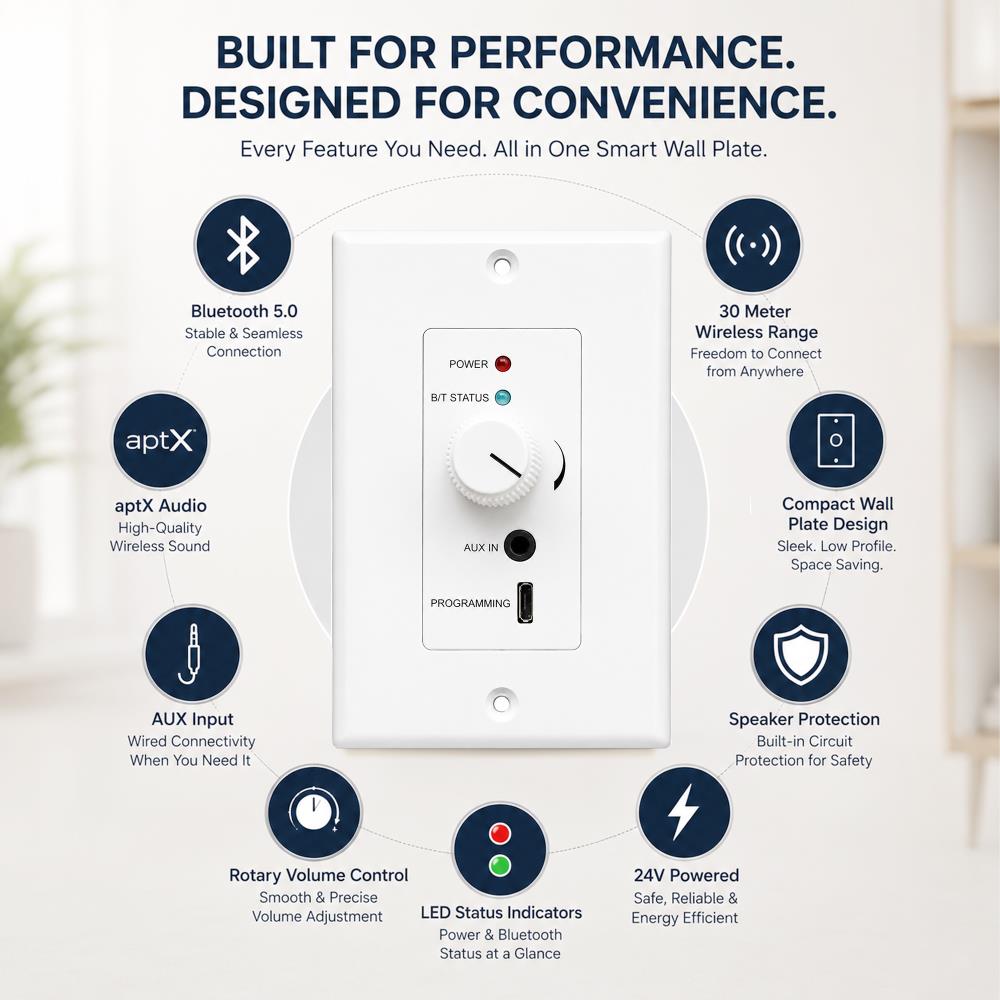

The Vaiyer Bluetooth Wall Plate Audio Amplifier combines wireless Bluetooth audio streaming and wired AUX connectivity in a compact in-wall design. Featuring Bluetooth 5.0 with aptX and a built-in Stereo Class-D amplifier, it delivers 2 x 25W RMS output to compatible passive speakers. In addition to Bluetooth and stereo line-level AUX input, the amplifier allows installers to configure the Bluetooth device name and PIN code using the included USB TTL configuration cable, providing additional installation flexibility. Bluetooth audio is automatically prioritized whenever both input sources are available.
Built for reliable operation, the VRWPA64BT includes a speaker protection circuit and a 3-minute Bluetooth link-lost timeout that automatically returns the unit to pairing mode if reconnection is not established. Supporting passive speakers with a minimum 4-ohm load and powered by the included 24V DC adapter, this complete package includes the wall plate amplifier, USB TTL configuration cable, mounting screws, and user manual for installation.
Specifications:
