- Bluetooth Version: Bluetooth v5.0 compatible with aptX
- Audio Inputs: Bluetooth Receiver or Stereo Audio Line-Level Input
- Bluetooth Range: Up to 30 meters (open space)
- Power Amplifier Type: Stereo Class-D
- Output Power: 2 × 45W RMS per channel (@ 4Ω)
- Peak Power: 250 Watts
- Minimum Load Resistance: 4Ω
- THD+N: 0.1% (@ 4Ω, 1 kHz)
- Speaker Protection: Built-in protection circuit

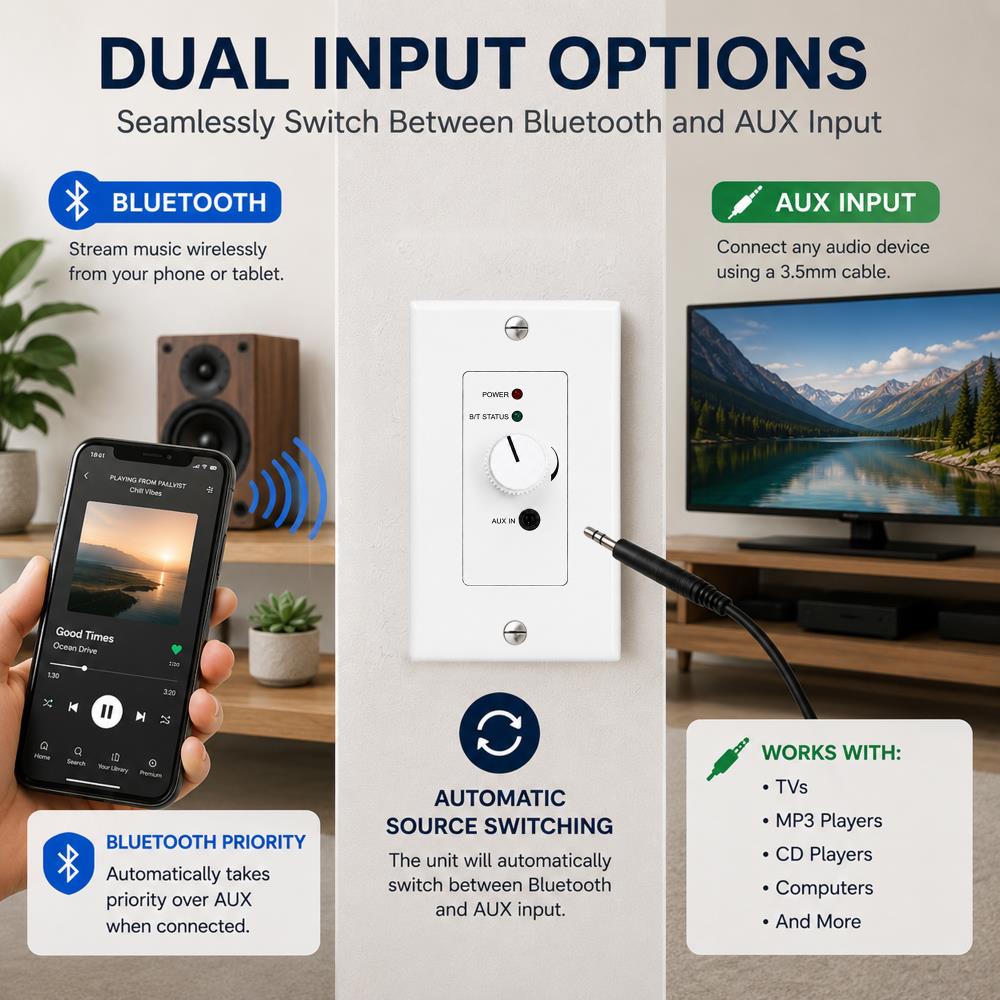

- Audio Priority: Bluetooth > AUX Input
- Link-Lost Timeout: 3-minute automatic pairing mode reset
- Power Source: 24 VDC

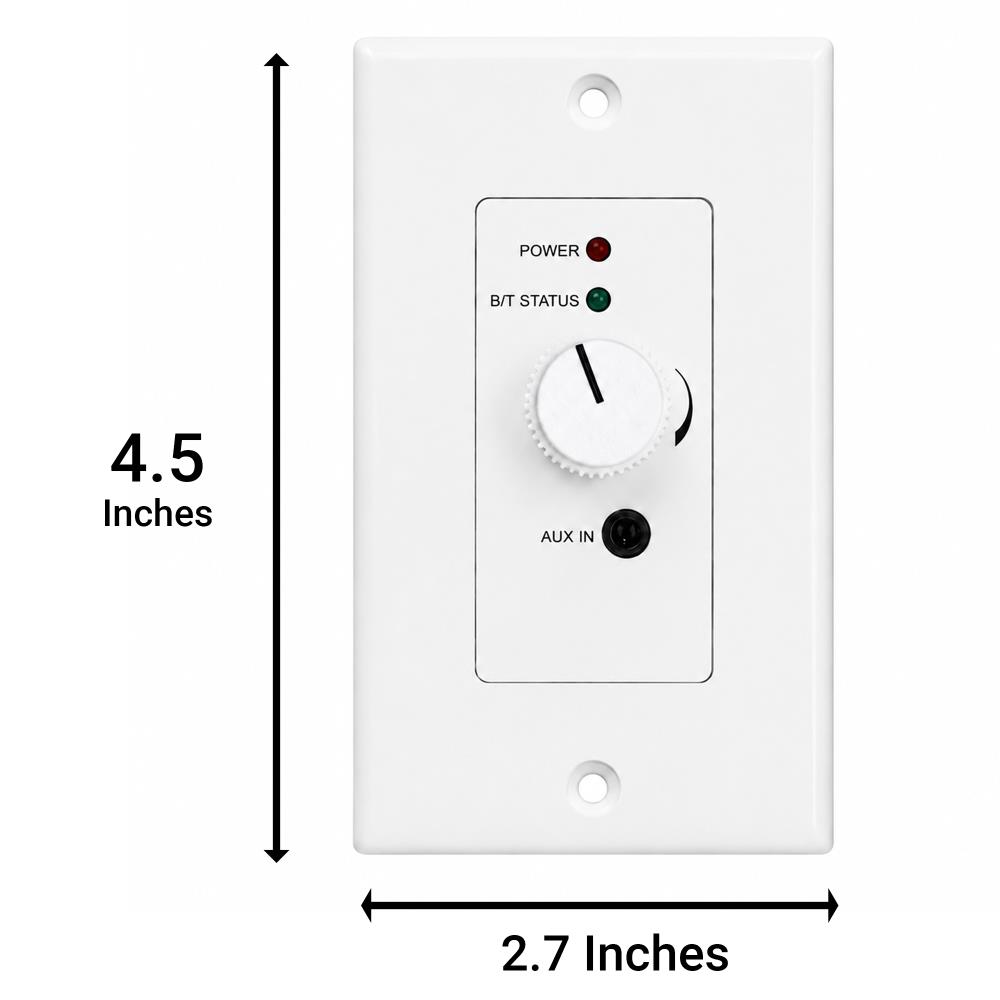

- Design: Compact wall plate for easy installation

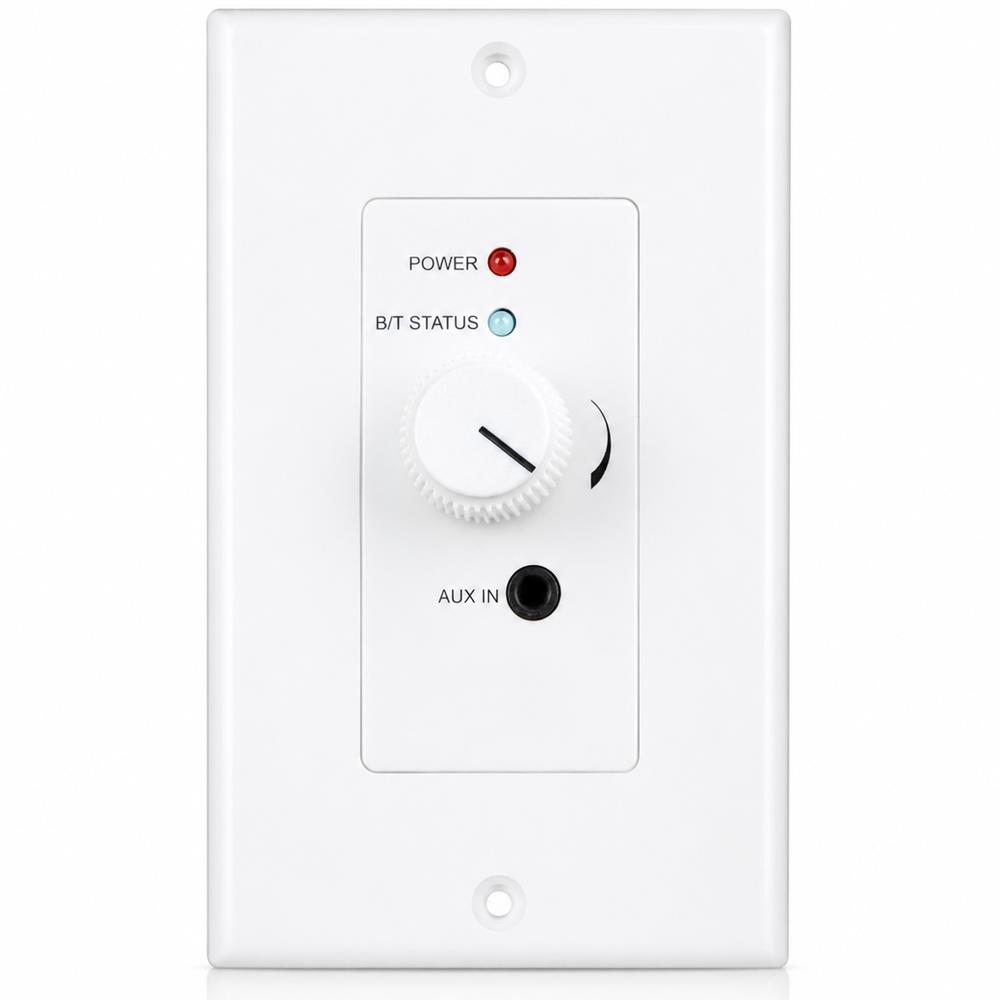

The Vaiyer Bluetooth Wall Plate Audio Amplifier is designed to provide a clean, integrated audio solution for installations requiring wireless Bluetooth streaming and wired audio connectivity in a compact wall plate format. Equipped with Bluetooth 5.0 with aptX and a built-in Stereo Class-D amplifier, it delivers 2 x 45W RMS output to compatible passive speakers while maintaining a streamlined in-wall appearance. The amplifier supports both Bluetooth and stereo line-level AUX input, automatically prioritizing Bluetooth audio when both sources are connected.
Designed for convenient operation, this audio amplifier features a built-in speaker protection circuit and a 3-minute Bluetooth link-lost timeout that automatically returns the unit to pairing mode if reconnection is unsuccessful. With support for passive speakers with a minimum 4-ohm load, a wireless range of up to 30 meters in open space, and an included 24V DC power adapter, it offers a complete solution for Bluetooth audio installations. The package includes the wall plate amplifier, power adapter, mounting screws, and user manual for installation.
Specifications:
